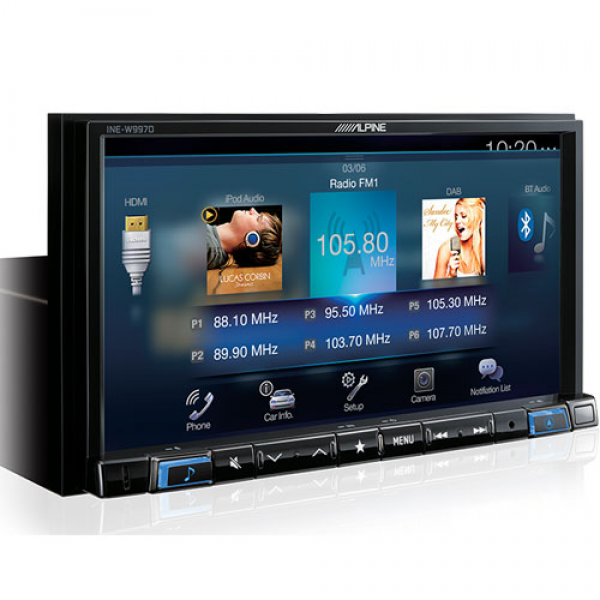

Alpine 7″ Navigation INE-W997D DAB+/RDS/HDMI/FLAC/MP3/WMA/AAC/USB/ BLUETOOTH/ADVANCED PRIMO 3.0 NAVIGATION
OWNERS MANUAL: INE-W997D
Crafted by engineering and innovation the INE-W997D is a truly remarkable in-dash multimedia navigation system. Graced by an ultra-high-end 7” capacitive panel and an all new human-to-machine interface, both function and design unite for effortless usability and a display that is exceptionally beautiful and vivid. The single-din chassis allows for versatile installations of the double-din 7” screen, where limited space may have previously been an issue.
The INE-W997D introduces a world of digital entertainment to playback high-resolution FLAC audio files as well as MP3, WMA and AAC music from USB, plus video and audio from iPod or iPhone, DAB+ digital radio, RDS and much more. Moreover, HDMI enables connectivity to devices such as a DVE-5300 CD/DVD player and smartphones for virtually limitless sound and vision. Built-in Bluetooth allows for hands-free calling, audio streaming and even voice control directly from compatible smartphones.
The all-new Primo 3.0 NextGen navigation sets the industry standard by offering a rich content experience with 3D landmarks and city scapes, high resolution maps and seamless animation graphics all controlled via a state-of-the-art intuitive user interface. Premium navigation features include live traffic updates, fixed speed and red light camera alert, school zone alerts, 4WD off-road maps, and enhanced POI capabilities including parking areas. Best of all, innovative ‘One-Look Navi’ means that with a single swipe you can easily display navigation and the selected source for convenient operation and information at a glance.
Additionally, the INE-W997D is steering wheel control and CAN/UART interface ready for seamless integration into a variety of vehicles, enabling retention of factory fitted functions. A direct camera port allows for the connection of a multi-view reverse camera.
TECHNOLOGY: WVGA High Resolution Display, USB for iPod or iPhone and MP3/WMA/AAC, MediaXpander Plus, Radio Data System, 3D Landmarks, Lane Guidance, Safety Alerts, POI Search, Text-To-Speech Guidance, Rear USB for iPhone/iPod, Sub Woofer Level, Steering Wheel Remote Ready, Remote Control Ready, USB Cable Included.
FEATURES
Tuner
Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
Memory: Auto Memory.
Seek Mode: Local / DX Selection
RDS
RDS Functions: PI, PS, AF, TA, TP, PTY, EON, NEWS, RADIO TEXT
DAB Tuner
DAB+ Tuner Built-in
DAB+/DMB Supported
DAB+ Slideshow Service
DAB Service Following
RDS Fallback (where available)
Service Preset: 18 Preset Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
Antenna Power Supply Selection
Bluetooth
Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands-Free Phone and Music Streaming
Phone Book: Phone Book Synchronization
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 24 Languages
Firmware Updatable
Microphone Included
Made for iPod /iPhone
Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen.,
iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic
160GB/120GB/80GB, iPod with video, iPhone 6 and 6 Plus, iPhone5S,iPhone5C,
iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
Connection: KCU-461iV / Apple Lightning Cable (Sold Seperately)
Music & Video Playback Compatible with KCU-461iV only
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
Alphabet Search
Artwork Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging
Navigation Function
Map Coverage: 48 Countries (Western and Eastern Europe)
Menu Language: 29 Languages
Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
Advanced Address Search
Post Code Search
Free Form Search
Partial Name Search
Advanced POI Functions
Smart Routes: Smart Routes using historic traffic patterns
Advanced Route Planning
Eco Route Search
7 Alternative Route Recommendation
Advanced TMC Mode
Map Display Mode: 2D Heading Up, 2D North Up, 3D
3D City Mode: 3D Building/Icon Display
Elevation Map Display: 3D maps with elevation mode
3D Motorway Junction View: Junction View with Sign Post
Drive Lane Suggestion
Tunnel Mode
Highway Mode
Voice Guidance Mixing
Text-to-Speech
Direct Phone Call from POI data
3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
USB Media Connection
USB Connection: USB Extension Cable Included
Music Playback: FLAC/MP3/WMA/AAC Playback
File / Folder Name Search
Tag Info Search
Folder Up / Down
M.I.X. Random Play
Repeat
Sound Tuning
Bass Engine SQ
Bass Engine™ Pro
Subwoofer Level Adjustment
Subwoofer Phase Select
4V High Voltage PreOut
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel Digital Time Correction
Digital Crossover Setting
Customized Sound Setting by Car Type
MediaXpander HD
Application Volume Level Setting
Sound Setting Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt App ready
General
Power Output: 4 x 50 W High Power Amplifier
Advanced Power IC
Display: 7′′ Capacitive WVGA High Resolution Display
White LED Backlighting System
50/50 Split Screen: Left / Right Position Changeable
Control Type: Touch, Drag, Flick
My Favorites Function
Automatic Setting Change for 2 Users
High Grade Audiophile Design
PreOut: 3 PreOuts (4V, Front / Rear / Subwoofer)
AUX-In: 1 A/V AUX Input
Steering Wheel Remote Control Function
OEM Sub-display Function
Remote Control Ready
Navigation Guidance Mix
Camera Connection & Built-in Controls for Multi-View Cameras
Camera Guide Line Adjustment
Rearview Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast Adjustment
Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
Clock
Auto Dimmer
Anti-theft security code
Firmware Updatable
Power Antenna Lead
Remote Turn-On
HDMI Input (Alpine Special HDMI connector required)
Engine Start-Stop unaffected
CAN Connection Interface Included
DAB Antenna Included
Ready for optional DVD Player DVE-5300
Map & Database
Online Map Update
Installation
Perfect F.I.T. Kit Solutions available
Specifications
Screen
Screen Size: 7-inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL
Max Power Output Ratings
Max Power Output: 4 x 50 W
FM Tuner
Tuning Range: 87.5 – 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 – 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
Tuning Range: 153 – 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
USB Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
Flac Decoding
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB
GPS
GPS Antenna Type: Micro-strip Planar Aerial
Reception Frequency: 1575.42 ±1 MHz
Reception Sensitivity: -130 dB Maximum
Reception Method: Parallel 12 Channels
BLUETOOTH®
BLUETOOTH® Version: Bluetooth V2.1+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
Sound Tuning
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
HighPassFilter (Gain): -12 to 0 dB
LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
LowPassFilter (Gain): -12 to 0 dB
Time Correction: 0.0 – 9.9ms (0.1ms step)
Dual HD EQ Front + Rear
Parametric Equalizer (Band 1): 20 – 100 Hz
Parametric Equalizer (Band 2): 63 – 315 Hz
Parametric Equalizer (Band 3): 125 – 500 Hz
Parametric Equalizer (Band 4): 250 – 1k Hz
Parametric Equalizer (Band 5): 500 – 2k Hz
Parametric Equalizer (Band 6): 1k – 4k Hz
Parametric Equalizer (Band 7): 2k – 7.2k Hz
Parametric Equalizer (Band 8): 5.8k – 12k Hz
Parametric Equalizer (Band 9): 9k – 20k Hz
Parametric Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14
HDMI Section
Input Format 720p/480p/VGA
Output Format 480p
General
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 4 V / 10k ohms
Maximum Mounting Angle: 30°
Dimensions
Din Size: 1DIN chassis and 7” Capacitive Touch Screen
Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
Nose Piece Size (W x H x D) mm: 170 x 96 x 17 mm
