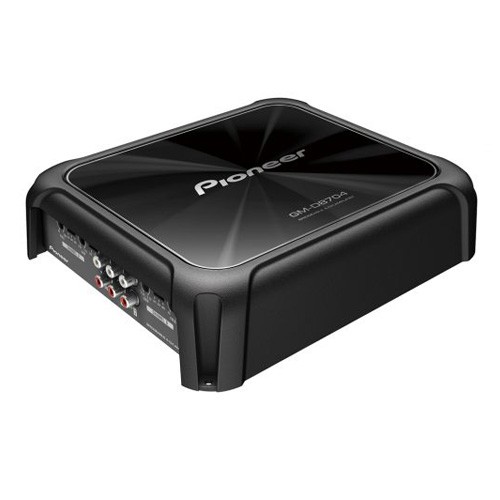

Pioneer Class FD 4-CH Bridgeable Amplifier

Home / Car Audio / Car Amplifiers / Pioneer Class FD 4-CH Bridgeable Amplifier

Product Code: GM-D8704

Brand: PIONEER

$ 400.00

Availability: In Stock

GM-D8704

Class FD 4-Channel Bridgeable Amplifier

• 1,200 Watts Max Power
• Compact Design for Versatile Installation Options
• Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound


GENERAL
RCA Inputs4-CH
Amplifier ClassCLASS-D
Hi-Res CertifiedNo
BridgeableYes
Warranty1 Year
Speaker Level InputYes
Fuse Rating30A x 2
Bass Boost RemoteYes
Automatic Signal Sensing and Turn-OnYes
Hi-Volt Input Level Control200 mV to 6.5 V
Terminal TypeBlock
Load Impedance Allowance (Ohms)1 to 8
Protection Control SystemYes
Dimensions252mm (W) x 60mm (H) x 215mm (D)
POWER
Continuous Power (RMS) Output @ 1Ω125W RMS x 4
Continuous Power (RMS) Output @ 2Ω150W RMS x 4
Continuous Power (RMS) Output @ 4Ω100W RMS x 4
Continuous Power (RMS) Output - Bridged @ 4Ω300W RMS x 2
AUDIO ADJUSTMENTS
Low-Pass Crossover Frequency40 Hz
Low-Pass Slope (dB/octave)-12dB
High-Pass Crossover Frequency500 Hz
Bass Boost Frequency50 Hz
Bass Boost Level0 dB to 18 dB
AUDIO SPECIFICATIONS
Frequency Response10 Hz - 50 kHz
Total Harmonic Distortion (THD)< 0.5% (100 Hz)
Signal-to-Noise (SN) Ratio> 95dB
