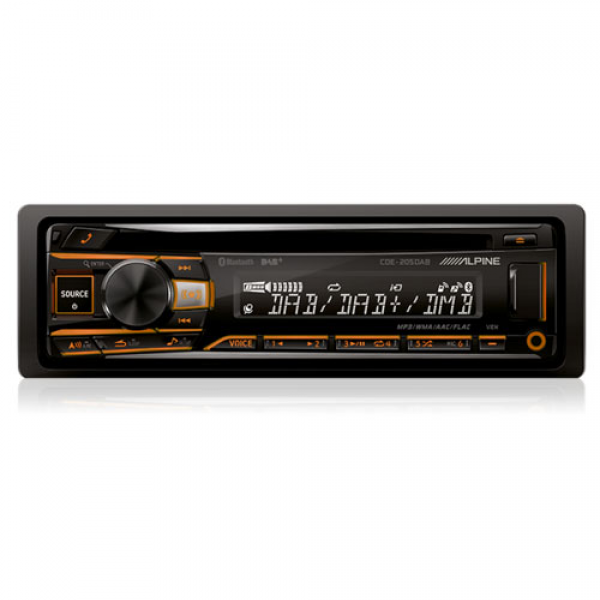

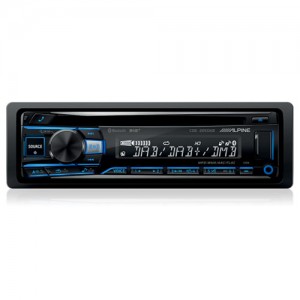

Alpine CDE-205DAB

1-DIN CD RECEIVER WITH DAB+ DIGITAL RADIO / BLUETOOTH / AUX / USB / FLAC

OWNERS MANUAL: CDE-205DAB

Designed to be the highlight of any dash, the CDE-205DAB delivers Alpine’s famous sound quality along with a myriad of features. The built in DAB+ Digital Radio tuner uses the most advanced digital technology to deliver radio reception in outstanding, noise-free sound quality. The CDE-205DAB allows the connection of USB memory sticks to play MP3/WMA/ACC and high resolution FLAC files or plug in your iPod/iPhone for quick access to all your favourite music.

What’s more, built-in Bluetooth enables hands-free calling, audio streaming and voice control with compatible phones for maximum convenience. While also supporting the latest Android Open Accessory 2.2 (AOA 2.0) technology you are able to have full control of audio options on an Android smartphone via the USB connection. The CDE-205DAB is designed to integrate with any dash, providing the ability to change the illumination between blue, green, red, yellow, aqua and gold via the variable RGB function.

TECHNOLOGY

 Made for iPhone
 3 Preouts
 50 Watts x 4 Built-in Amplifier

 Bass BQ

 Bluetooth

 DAB+built-in

 Detachable Face

 FLAC High Resolution Music Playback

 Front Auxiliary

 Front USB Connection

 Variable RGB Illumination

 Media Xpander

 WMA / MP3 / AAC

 Remote Control Ready

 Steering Wheel Remote Ready

 Sub Woofer Level

 USB Cable Included

 USB for iPod or iPhone and MP3 / WMA / AAC

FEATURES

TUNER

 Memory Presets: Preset Stations (FM:12, MW:6, LW:6)

 Memory: Auto Memory

RDS

 RDS Functions: AF, TA, TP, PTY, EON

 PTY (Programme Type) Display

DAB TUNER

 RDS Functions: AF, TA, TP, PTY, EON

 PTY (Programme Type) Display

 DAB+ Tuner Built-in

  DAB+/DMB Supported

 DLS (Dynamic Label Service)

 DAB Service Following

 RDS Fallback (where available)

 Service Preset: 18 Preset Memory

 Auto Ensemble/Service Memory

 Service Search Function

 PTY Search Function

 Antenna Power Supply Selection

 A compatible DAB Antenna is required

BLUETOOTH®

 Built-in BLUETOOTH® Module

 Hands Free Calling: HFP (Hands Free Profile)

 Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible

 Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible

 Phone Book Search

 Voice Dial Operation

 Auto Answer

 Call Waiting

 Call History Display: Phone Book Call, Dialled Call, Received Call

 Hands-Free Phone Sound Setting

 Firmware Updatable

 Microphone Included

Made for iPhone® / iPod®

 Connection: USB connection (KCU-445i Required)

 Made for iPod/iPhone

 M.I.X. (Shuffle) Play: Track

 Repeat: All, Track

 Battery Charging

DISC PLAYER

 Disc Type: CD Player

 Disc Playback Type: CD, CD-R/RW

 Music Playback: CDDA, MP3, WMA Playback

 M.I.X. Random Play

 Repeat: Track, All

 Playback Control: Play/Pause/Forward/Backward

 CD Text Display

 CD Text Name Search

 Multi Bit DAC

 Zero data Mute

USB MEDIA CONNECTION

 Front USB Connection

 MP3, WMA, FLAC, AAC Playback

 Folder Up/Down

 M.I.X. Random Play

 Repeat: Track, Album, All

 USB AOA (Android Open Accessory) 2.0

SOUND TUNING

 Subwoofer Level Adjustment

 BASS ENGINE SQ: Level Control OFF/1-6

 Subwoofer Phase Select: 0°/180°

 Subwoofer System Select

 High Pass Filter

 Low Pass Filter

 2V Voltage 3PreOuts

 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical

 3-band Parametric Equalizer

SPECIFICATIONS

Max Power Output Ratings

 Max Power Output: 4 x 50W

DAB Tuner

 Tuning Range Band III : 174.928 – 239.2 MHz

FM Tuner

 Tuning Range: 87.5 – 108.0 MHz

MW Tuner

 Tuning Range: 531 – 1,602 kHz

LW Tuner

 Tuning Range: 153 – 279 kHz

USB

 USB Requirements: USB 1.1/2.0

 Max. Power Consumption: 1000 mA
