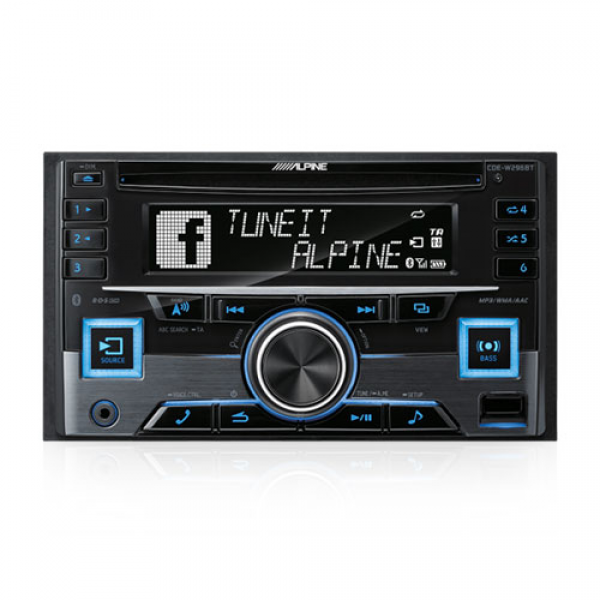

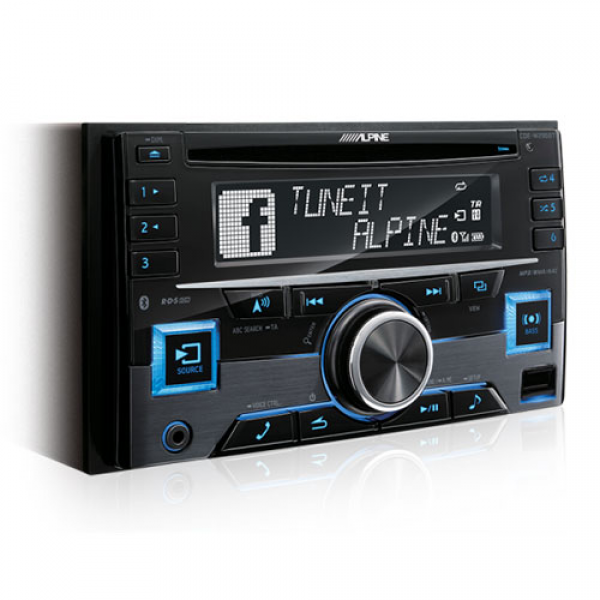

Alpine CDE-163EBT CD Receiver with Bluetooth / AUX / USB / FLAC
OWNERS MANUAL: CDE-163EBT
The CDE-W296BT offers a simplistic and stylish look making this premium head unit the perfect OEM upgrade. Play all your favourite music from CD, MP3/WMA/AAC files on USB storage, plug in your iPod/iPhone or listen to the radio with RDS (Radio Data System) for a variety of features such as display of station and track information. Plus, a handy AUX input on the front panel makes it easy to connect virtually any portable music device. What’s more, built-in Bluetooth enables hands-free calling, audio streaming and voice control with compatible phones for maximum convenience.
The 9 band parametric EQ and high pass / low pass filters give you maximum control to tune the sound exactly how you like it, while the TuneIt app gives you even more advanced audio tuning options including search and download of preset audio parameters.
The built-in adaptive steering wheel remote control allows factory steering wheel control functionality to be retained without the hassle and cost of an external interface module. Compatible with resistive-type vehicles, a quick learning and simple set-up is done via the settings menu of the CDE-W296BT.
TECHNOLOGY: Variable RGB illumination, USB for iPod or iPhone and MP3/WMA/AAC, Radio Data System, QuickSearch, MediaXpander, Sub Woofer Level, Remote Control Ready, Steering Wheel Remote Ready
Features
Tuner
Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
Memory: Auto Memory
Seek Mode: Local/DX Selection
RDS
RDS Functions: TA, TP, AF,CT, PTY, EON, Radio Text+
PTY (Programme Type) Display:
BLUETOOTH®
Built-in BLUETOOTH® Module
Hands Free Calling: HFP (Hands Free Profile)
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
BT Plus Advanced BLUETOOTH Technology
Connection: SSP (Secure Simple Pairing) Supported
Phone Book: Phone Book Synchronisation
Phone Book Search: 3 Letters Alphabet Search
Shortcut Dialling: 6 Presets Memory
Phone Registration: up to 5 Phones can be registered
Multiple Phone Number Registration: 5 Phone Number Registration Possibility
Phone Book Label Display: Telephone Type Display (General, Mobile, Home, Office, Other)
Voice Dial Operation: Voice Control for iPhone Supported
Auto Answer
Call Waiting
Call History Display: Phone Book Call/Dialled call/Received call/Missed call
Speech Volume Level Adjustment: Adjustable for Outgoing and Incoming Volume
Hands-Free Phone Sound Setting: 5 Type Selection
Signal Strength Indicator
Battery Level Indicator
Output Speaker Selection
Menu Language Selection: English, German, French, Italian, Spanish, Dutch, Russian
Firmware Updatable
Microphone Included
Made for iPod® / iPhone®
Compatibility for iPod/iPhone: Made for iPod touch 5G/4G/3G/2G/1G, iPod nano 7G/6G/5G/4G/3G, iPod classic 160GB/120GB/80GB,
iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
Connection: KCU-445i Required (for iPods / iPhones with 30-pin connector)
Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook, Genius Mix
Alphabet Search
Percentage Search
App Direct Mode
Direct Up/Down: Playlist, Artist, Album, Genre, Composer, Episode Up/Down
M.I.X. (Shuffle) Play: Song, Album, All
Repeat one
Battery Charging
iPhone: Automatic initial Bluetooth setup via USB
Alpine TuneIt App
Alpine TuneIt App Ready with iPhone and Android
Sound Setting Function
Sound Setting Data Upload to Alpine Cloud Server (Data Sharing)
Facebook Notification
Compatible for iPhone and Android Smartphones: Available on Apple App Store and Google Play Store
Disc Player
Disc Type: CD Player
Disc Playback Type: CD, CD-R/RW
Music Playback: CDDA, MP3, WMA, AAC Playback
M.I.X. Random Play: Track/Folder, All
Repeat
Playback Control: Play/Pause/Forward/Backward
CD Text Display: Disc/ Track display
CD Text Name Search
Percentage Search
DAC: 24 bit DAC
Zero data Mute
Digital Servo
USB Media Connection
Front USB Connection
Music Playback: MP3, WMA, AAC File Playback
USB Class: Mass Storage Class
File/Folder Name Search
Folder Up/Down
M.I.X. Random Play: Folder, All
Repeat
Sound Tuning
Subwoofer Level Adjustment
Bass Engine
BASS ENGINE SQ
Subwoofer Phase Select: 0°/ 180°
Subwoofer System Select
Default Equalizer setup
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
9-band Parametric Equalizer
Digital Time Correction
Digital Crossover Setting: 2Way / 3Way System
Application Volume Level Setting
MediaXpander
Power IC Management System
Alpine TuneIt App ready
General
Power Output: 4 x 50W High Power Amplifier with Advanced Power IC
Display: 14 Segments RGB LCD Display, 2 Lines
Control Type: Rotary Encoder Knob
Face Colour: Black
Illumination Buttons: Variable RGB Illumination Buttons
Display Colour Setting: Variable RGB Colour Display
Display and button illumination independently selectable
High Grade Audiophile Design
3 PreOuts (2V, Front + Rear + Subwoofer)
DAC: 24-bit DAC
AUX-In: Front AUX Input (3.5mm mini jack)
Steering Wheel Remote Control Ready: Direct connection
Mute: -20dB Mute (Remote control only)
Remote Control Ready
Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
Clock
Firmware Updatable: via USB
Detachable DIN Trim Plate
Dimmer
Power Antenna Lead
Remote Turn-On
Start-Stop Engine unaffected
Voice Control (SIRI activation)
Specifications
Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 – 108.0 MHz
Mono Usable Sensitivity: 0.7 μV
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 – 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB
LW Tuner
Tuning Range: 153k – 281k Hz
Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB
Disc Player
Frequency Response: 5 – 20k Hz (±1 dB)
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
Wow & Flutter (%WRMS): B.M.L.
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class
File System: FAT 12/16/32
MP3 Decoding: MPEG Audio Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: AAC-LC Format ′′.m4a′′ File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
BLUETOOTH®
BLUETOOTH® Version : Bluetooth v2.1 + EDR
Output Power: +4 dBm Max. (Power Class 2)
HFP (Hands Free Profile)
HSP (Head Set Profile)
A2DP: Advanced Audio Distribution Profile
AVRCP: Audio/Video Remote Control Profile v1.4
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
SPP (Secure Simple Pairing)
Sound Tuning
Subwoofer Level Adjustment: 0 to 15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: Level 0 – 6
Bass Level Control Range: ±9.1 dB at 100Hz
Treble Level Control Range: ±9.1 dB at 10kHz
Parametric Equalizer (Band 1): 20 – 100 Hz
Parametric Equalizer (Band 2): 63 – 315 Hz
Parametric Equalizer (Band 3): 125 – 500 Hz
Parametric Equalizer (Band 4): 250 – 1k Hz
Parametric Equalizer (Band 5): 500 – 2k Hz
Parametric Equalizer (Band 6): 1k – 4k Hz
Parametric Equalizer (Band 7): 2k – 7.2k Hz
Parametric Equalizer (Band 8): 5.8k – 12k Hz
Parametric Equalizer (Band 9): 9k – 20k Hz
Parametric Equalizer (Gain): -7 to 7
Parametric Equalizer (Bandwidth): 3, 4, 5
2Way Crossove Mode: Cut-off Frequency 20-200Hz, Slope Flat/6/12/18/24 dB/oct, Level -12 to 0dB
3Way Crossover Mode: Cut-off Frequency Low/Mid Low 20-800Hz Mid High 20-20kHz High 1k-20kHz, Slope Flat/6/12 dB/oct, Level -12 to 0dB
Application Volume Level Setting: ±14 dB
General
Power Requirement: 14.4 V.DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Operating Temperature (°C): 60 °C (140 °F) to -10 °C (14 °F)
Maximum Mounting Angle: 35°
Weight: 1.85 kg
Dimensions
Din Size: 2 DIN
Chassis Size (W x H x D) mm: 178 x 100 x 161.7 mm
Nose Piece Size (W x H x D) mm: 169.8 x 95.8 x 26.2 mm
