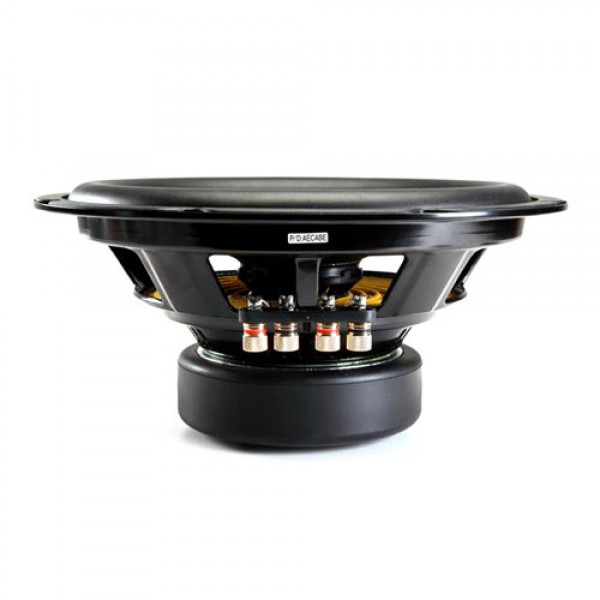

Sony XS-GSW121D 12" 2000W Dual Voice Coil Subwoofer
Created with Performance in Mind, This Is the Perfect Way to Get Outstanding Bottom End into Your Audio System
Whether you are expanding into a full-blown aftermarket setup, or are just looking to integrate better overall performance into your OEM setup, the GS Series has you covered. These drivers have been purposed-engineered to deliver outstanding sound quality and exponentially better overall performance over anything else in its price bracket.
The XS-GSW121D, specifically, is a 12" Dual Voice Coil subwoofer driver intended to deliver larger, yet controlled, "boomy" bass. Its large surface area allows it displace a lot of air to reach the desired low end frequency range. It is also able to accomplish this by maximizing the overall build quality, delivering a very solid 520 Watts RMS with an excursion peaking at 8.9mm. In addition, the XS-GSW121D has a very respectable Frequency Response range of 20 - 600 Hz, making it very easy to blend (crossover) into your Full-Range stage.
Subwoofer Design
The XS-GSW121D DVC subwoofer cone is constructed using a Mica Reinforced Cellular composite for reduced weight and increase rigidity, delivering deep bass response. The 5-way gold plated binding post provide secure wire connections for high power handling.
High Energy Magnets
The XS-GSW121D woofer uses a powerful, high energy Ferrite magnet to control cone travel and deliver big power handling.
Power Handling
The XS-GSW121D subwoofer is rated for 420 Watts, 520 Watts RMS (CEA 2031 rated) and can handle peak power of 2000 Watts.
Features:
-
High power handling with 2000 W peak power and a rated power of 400 W
- MRC Honeycomb design for precise, powerful bass with minimal distortion
- 20–600 Hz frequency response
- Double-layered spider ensures long excursion to reproduce richer bass sound
- Stabilized rubber surround for minimized acoustic distortion
Specifications:
Size & Weight
Speaker System
General Features
-
PEAK POWER 2000 W
- RATED POWER 400 W
Subwoofer
-
DIAPHRAGM MATERIAL Mica Reinforced Cellular with honeycomb
- MAGNET MATERIAL Ferrite
