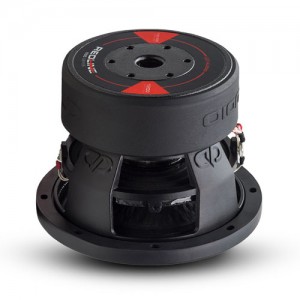

DD Audio 510 10" 1200W 500 Series Subwoofer

Features:

• EROM surround
• High-temp, 2.0”, voice coil
• Double Layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back plate coil gap venting
• Extended pole piece
• DD stamped steel basket (508-512)
• DD cast basket (506)

Specifications:

• Driver Size: 10"
• Watts RMS: 150 – 400
• Peak Power: 1200
• VCD: 2
• Impedance: D2 / D4
• Piston Dia: in 8 1/8
• Fs: Hz 30.28
• Qms: 4.321
• Qes: 0.4602
• Qts: 0.4159
• Vas liters: 27.44
• Xmech: mm 64
• Xmax: mm 10
• Frame OD: in 10 1/8
• Frame OD w/Gasket: in 10 3/8
• Mounting Diameter: in 9 3/16
• Mounting Depth:  in 5 ¼
• Motor Diameter: in 5 ½
• Motor Depth: in 2
• Woofer Displacement: cu ft 0.07
• Sealed Enclosure: cu ft 0.4 - 0.8
• Ported Enclosure: cu ft 1.25 - 1.5
• Shipping Weight: lbs 15
