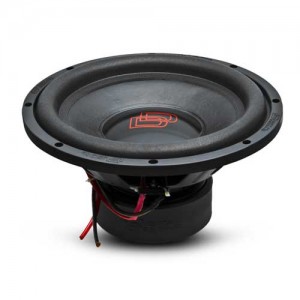

DD Audio DD-610-D2 10" 1800W 600 Series DVC Subwoofer

Features:

• EROM surround
• High-temp, 2.5”, voice coil
• Triple Layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back plate coil gap venting
• Extended pole piece
• DD stamped steel basket (610-612)
• DD cast basket (608)

Specifications:

• Driver Size: 10"
• Watts RMS: 300 – 600
• Peak Power: 1800
• VCD: 2.5
• Impedance: D2 / D4
• Piston Dia: in 8
• Fs:Hz 34.99
• Qms: 6.114
• Qes: 0.5562
• Qts: 0.5099
• Vas liters: 17.01
• Xmech: mm 64
• Xmax:mm 11
• Frame OD: in 10 1/8
• Frame OD w/Gasket: in 10 3/8
• Mounting Diameter: in 9 3/16
• Mounting Depth: in 5 ½
• Motor Diameter: in 6 ½
• Motor Depth: in 2 ½
• Woofer Displacement: cu ft 0.08
• Sealed Enclosure: cu ft N/A
• Ported Enclosure:cu ft 1.25 - 1.5
• Shipping Weight: lbs 18
