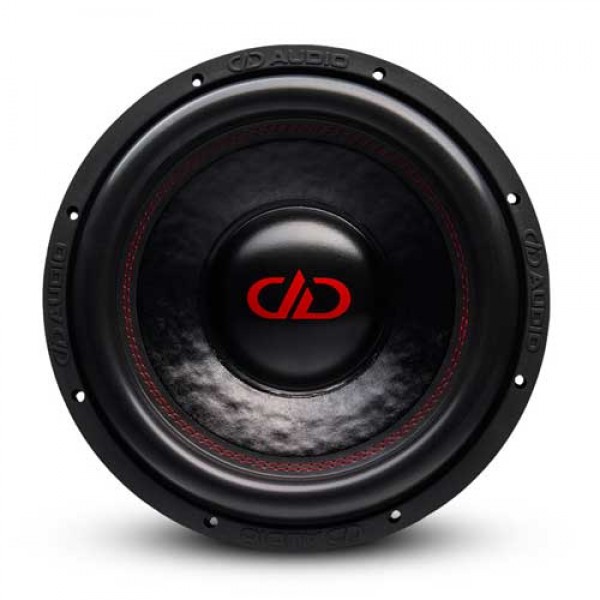

DD Audio DD-712 12" 3600W 700 Series DVC Subwoofer

Making Them Best Suited for Duty in Vented or Multi-Order Enclosures

The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround.

Note: Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

10-Gauge Push Terminals

Push terminals allow for quick sturdy connections to the speaker wire coming from your amplifier. These terminals will accept up to 10-Guage speaker wire for delivering maximum power to the voice coil.

Cast Aluminum Basket With Cooling Vents

Double Stitched EROM Surrounds

Extended Pole Piece

The REDLINE subs feature extended pole pieces for added high excursion control and improved heat dissipation.

Triple Layer Laminated Spiders

Features:

• EROM surround
• High-temp, 3.0”, voice coil
• Triple layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back plate coil gap venting
• Extended pole piece
• DD cast basket

Specifications:

• Driver Size: 12"
• Watts RMS: 600 – 1200
• Peak Power: 3600
• VCD: 3
• Impedance: D2 / D4
• Piston Dia: in 10 ¼
• Fs: Hz 28.26
• Qms: 4.344
• Qes: 0.4823
• Qts: 0.4341
• Vas liters: 39.64
• Xmech: mm 80
• Xmax: mm 14
• Frame OD: in 12 5/8
• Frame OD w/Gasket: in 12 7/8
• Mounting Diameter: in 11 3/8
• Mounting Depth: in 8 9/16
• Motor Diameter: in 7 ¾
• Motor Depth: in 3 ½
• Woofer Displacement: cu ft 0.17
• Sealed Enclosure:cu ft N/A
• Ported Enclosure: cu ft 1.75 - 2.75
• Shipping Weight: lbs 38
