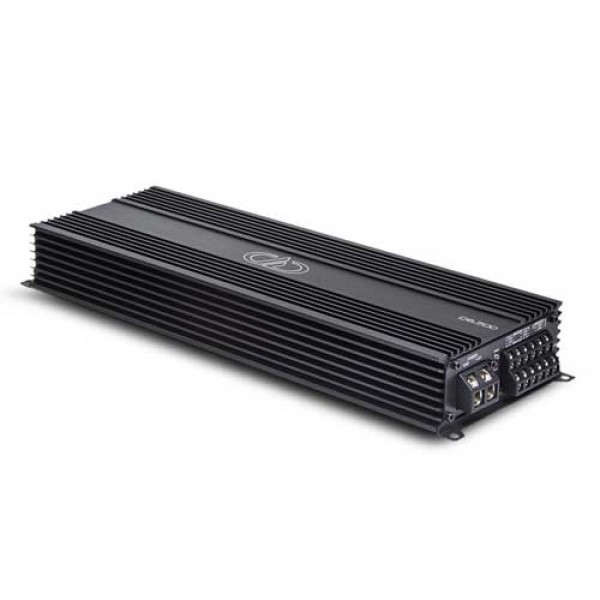

DD Audio D6.500 D Series 6-Channel Amplifier

Perfect Amp for Powering Entire Car, Bike, or Boat Systems

The D6.500 is one of the most versatile amplifiers in our line up. It can be configured to drive several different speaker arrays including front + rear + sub, 2-way front + rear, or 3-way component sets.

Note: Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

Features:

• MOSFET Power Supply Amplifier
• 4 Gauge Set Screw Power Terminals
• 12 Gauge Set Screw Speaker Terminals
• Heavy Duty PCB
• Variable HP/LP/BP Crossovers
• 5-way Protection: Speaker Short, Thermal, Overload, Hi/Low Voltage, DC Offset

Specifications:

• Test Voltage 14.4
• Channels 6
• Cont Wattage @ 4ohm (CH 1-4) 100x4 / 320x2 | (CH 5-6) 200x2 / 560x1
• Cont Wattage @ 2ohm (CH 1-4) 160x4 / (CH 5-6) 280x2
• Max Current Draw – Amperage 120
• S/N Ratio >90dB
• THD <0.2%
• Input Voltage Sensitivity 6V ~ 0.2V
• Pass-Through Output No
• Remote Subwoofer Control No
• Power Wire Guage In 4
• Speaker Wire Gauge Out 12
• Dimensions: in 13.7 x 4.9 x 1.8
• Dimensions: mm 350 x 125 x 47
