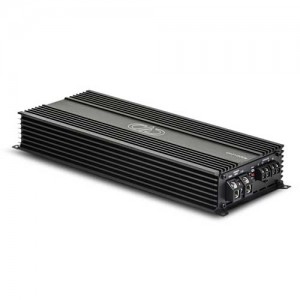

DD Audio DM1000a 1500W RMS D Series Monoblock Amplifier

The D Series Monoblock sub amps are designed to be mini amps with immense power.

Features:

• Angle lock set screw terminals
• 24dB/Oct bandpass filters
• Double sided-conformal coated PCBs
• Remote gain control with a clipping indicator

Specifications:

• Test Voltage: 14.4
• Channels: 1
• Cont Wattage: @ 4ohm 470
• Cont Wattage: @ 2ohm 770
• Cont Wattage: @ 1ohm 1000
• Dynamic Wattage: 1500
• Max Current Draw: Amperage 90
• S/N Ratio: >80dB
• THD: <0.5%
• Input Voltage Sensitivity: 200mV~6V
• Pass-Through Output: Yes
• Remote Subwoofer Control: Yes
• Power Wire Gauge In: 4
• Speaker Wire Gauge Out: 12
• Dimensions: in 11.8 x 4.92 x 1.85
• Dimensions: mm 300 x 125 x 47
