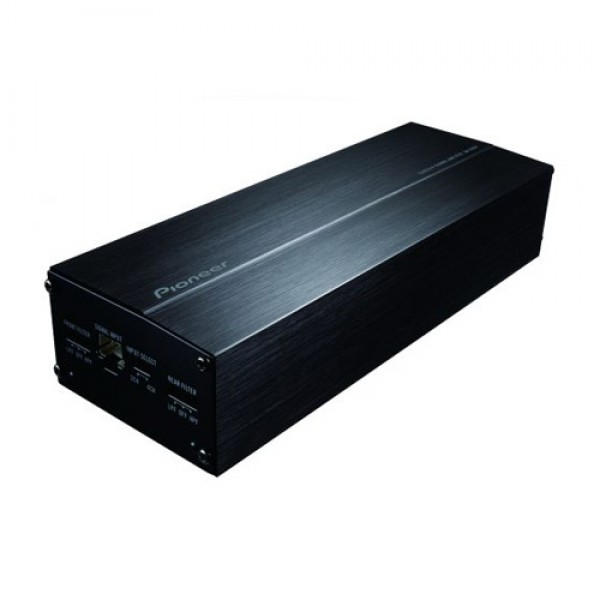

Pioneer Compact Class FD 4-CH Amplifier

Home / Car Audio / Car Amplifiers / Pioneer Compact Class FD 4-CH Amplifier

Product Code: GM-D1004

Brand: PIONEER

$ 219.00

Availability: In Stock

GM-D1004

Compact Class FD 4-Channel Amplifier

• 400 Watts Max Power
• Compact Design for Versatile Installation Options
• Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound

GENERAL
RCA Inputs4-CH
Amplifier ClassCLASS-FD
Hi-Res CertifiedNo
BridgeableYes
Warranty1 Year
Speaker Level InputYes
Fuse Rating15A x 1
Bass Boost RemoteNo
Automatic Signal Sensing and Turn-OnYes
Hi-Volt Input Level ControlN/A
Terminal TypeRemovable
Load Impedance Allowance (Ohms)2 to 8
Protection Control SystemYes
Dimensions64mm (W) x 38mm (H) x 181mm (D)
POWER
Continuous Power (RMS) Output @ 1ΩN/A
Continuous Power (RMS) Output @ 2Ω45W x 4
Continuous Power (RMS) Output @ 4Ω45W x 4
Continuous Power (RMS) Output - Bridged @ 4Ω90W x 2
AUDIO ADJUSTMENTS
Low-Pass Crossover Frequency80 Hz (LPF/OFF/HPF)
Low-Pass Slope (dB/octave)-12 dB/octave
High-Pass Crossover Frequency80 Hz (LPF/OFF/HPF)
Bass Boost FrequencyN/A
Bass Boost LevelN/A
AUDIO SPECIFICATIONS
Frequency Response10 Hz to 40 kHz (+0dB, -3dB)
Total Harmonic Distortion (THD)< 0.05% (1 kHz)
Signal-to-Noise (SN) Ratio75 dB
